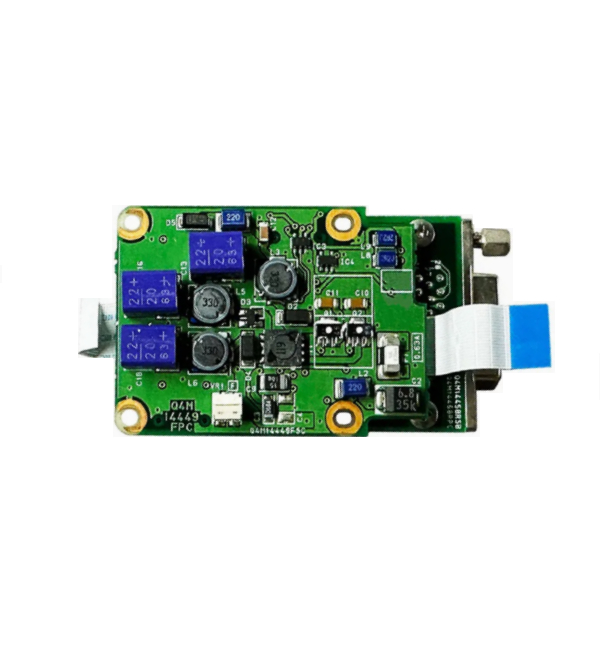

PCBA  Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

PCBA  Applications

• Automated Environmental Control: The PCBA continuously monitors and automatically regulates critical interior conditions such as temperature, humidity, and ventilation fan speed, ensuring a healthy and stress-free environment for the flock year-round.

• Intelligent Access and Security Management: It controls a motorized door with integrated safety features, allowing for automated open/close schedules based on sunrise/sunset or a timer, while also sending alerts if the door is tampered with or left unsecured.

• Remote Health and Behavior Monitoring: Using camera vision and audio analysis, the PCBA enables remote viewing of the flock, detects anomalies in behavior or sounds (indicating distress or illness), and monitors overall flock activity levels.

• Optimized Feeding and Watering: The system can manage automated feeders and waterers on a schedule, monitor feed and water levels, and send low-level alerts to the owner, ensuring consistent access to fresh supplies.

• Predator Deterrence and Coop Security: The PCBA can trigger deterrents, such as lights or sounds, upon detecting motion from potential predators near the coop, and send immediate security alerts to the owner's smartphone.

• Data-Driven Insights and Flock Management: It logs historical data on environment, door cycles, and egg collection, helping owners identify trends, optimize coop conditions for better egg production, and maintain digital records of their flock's health.

• Remote Egg Collection Monitoring: Integrated sensors in nesting boxes can count eggs laid and notify the owner, allowing for timely collection to ensure egg freshness and prevent egg-eating behavior.

PCBA Features

1. Central Microcontroller Unit (MCU) or System-on-Chip (SoC): The PCBA is built around a robust MCU/SoC that acts as the central brain, processing data from all sensors, executing control logic, and managing connectivity for remote commands and alerts.

2. Multi-Sensor Integration Hub: The board interfaces with a suite of environmental sensors (temperature, humidity, air quality/ammonia), light sensors, motion detectors (PIR), and door status sensors to provide comprehensive situational awareness of the coop's conditions.

3. Motor and Actuator Drivers: It includes dedicated drivers and circuitry to reliably control various motors and actuators, such as those for the automatic door, ventilation fans, and automated feeder mechanisms.

4. Power Management and Versatile Inputs: The PCBA features an Advanced Power Management IC (PMIC) designed to handle multiple power sources, including solar panels, batteries, and mains power, ensuring uninterrupted operation and efficient energy use, crucial for often off-grid coop locations.

5. Robust Connectivity Options (Wi-Fi, LoRaWAN, Cellular): Equipped with Wi-Fi for integration into a home network, and optional LoRaWAN or Cellular (4G/LTE) modules for remote coops located outside of standard Wi-Fi range, guaranteeing constant data transmission and remote access.

6. Camera and Audio Processing Module: Supports a camera interface for live video streaming and image capture, and may include an audio codec and speaker/output for playing deterrent sounds or receiving audio from the coop.

7. Ruggedized and Environmentally Sealed Design: The PCBA is designed with conformal coating and uses industrial-grade components to withstand a harsh environment characterized by dust, moisture, ammonia corrosion, and wide temperature fluctuations.

FAQ

​PCB & PCBA  Description​

PCB Assembly OEM Service

Electronic Components Material Purchasing

Bare PCB Fabrication

Cable, Wire-harness Assembly, Sheet Metal, Electrical Cabinet Assembly Service

PCB Assembly Service: SMT, BGA, DIP

PCBA test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)

Conformal Coating Service

Prototyping and Mass Production

​​

PCBA ODM service

PCB Layout, PCBA Design According To Your Idea

PCBA Copy/Clone

Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design

Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming

Embedded User Interface Design / lSystem Hardware Design

​
